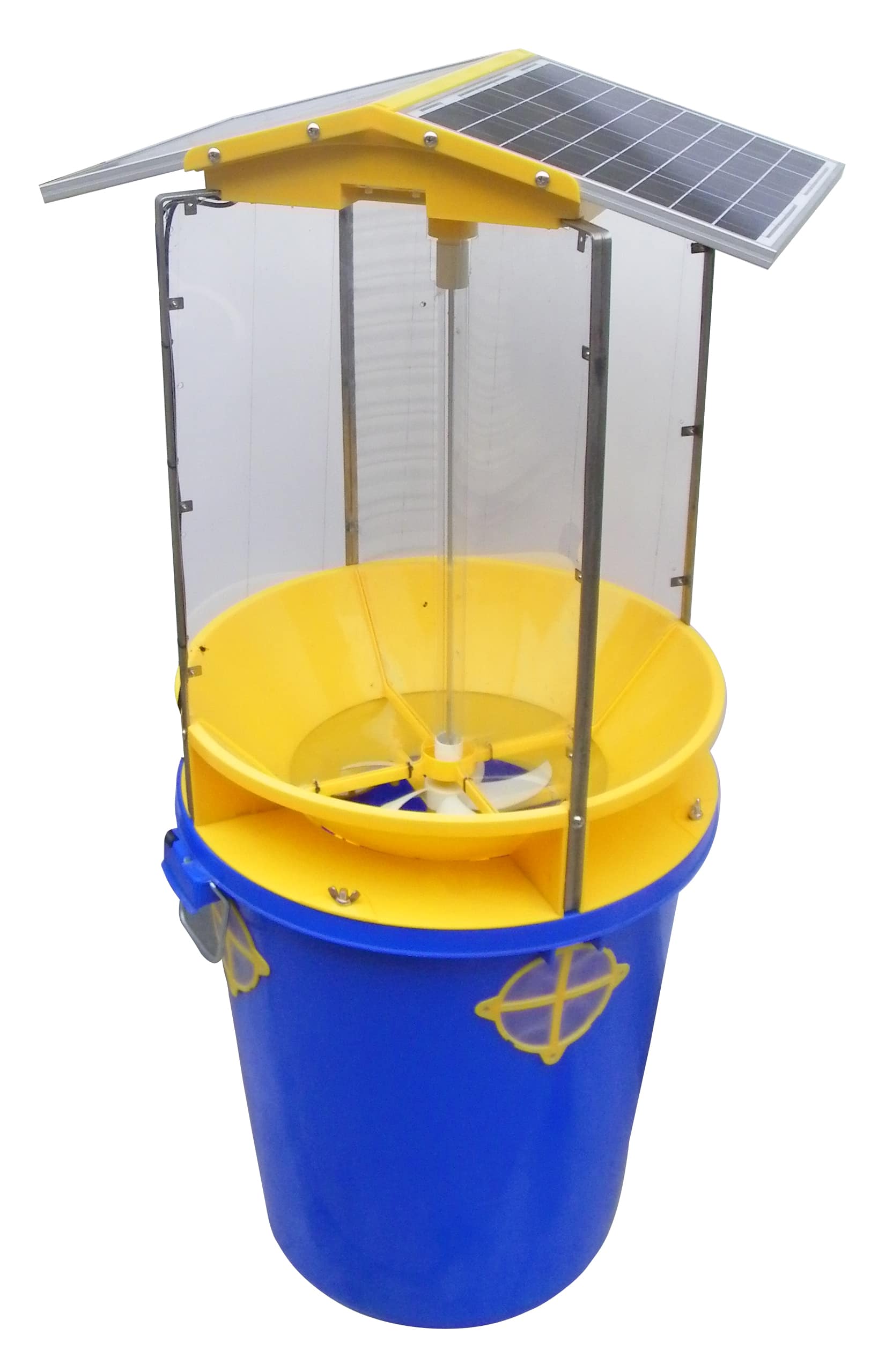

Solar Mosquito Trap – Large Area Insect Control

Finally a pest control product for the agricultural application and for people with a large back yard. Fewer insects equal better quality produce and happier outdoor times thanks to the Solar Mosquito Trap;

How it works

The outdoor solar insect killer will produce electricity with the highly effective solar panels and charge the Li-ion battery. It will automatically work from Dusk till Dawn. The insect killer will illuminate at night time attracting insects to fly into the light and crash into the transparent board. The insects will drop into the below compartment filled with water and die. Need a product more specific to a large rural backyard: try our Outdoor Dominator Mosquito Trap.

Solar Mosquito Trap Process

1. Strong LED lures insect into Solar killer system.

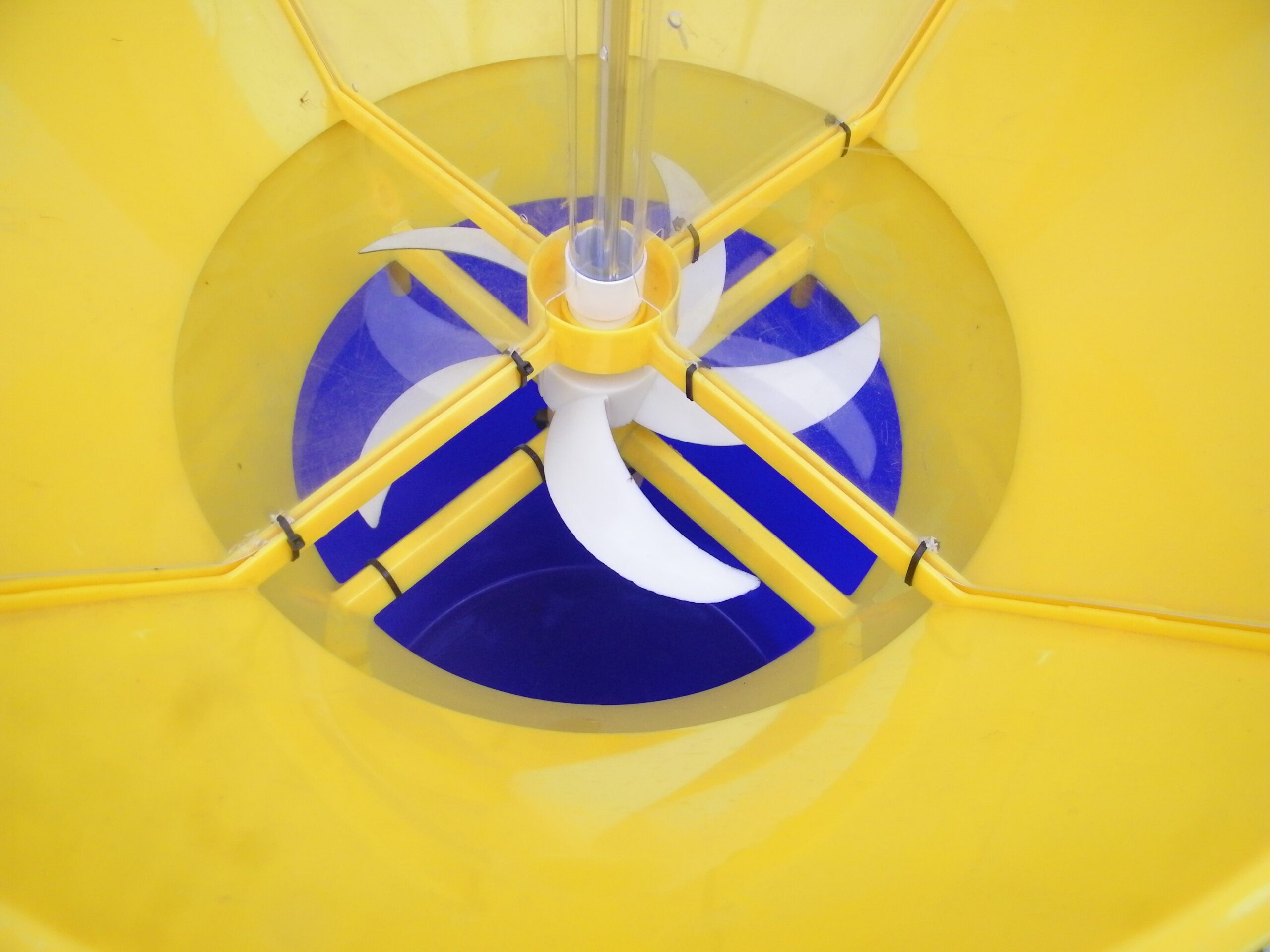

2. Insect crashes into the transparent board and then drop into the water. Smaller insects will also be sucked into the water by the fan.
3. Insects pass through the funnel and drops into the water where they drown.
4. When the water level gets too high, the water will leave the bucket through the overflow holes.

How the operation indicator works

1. Power Off: Press the RED button for 3 seconds to turn the power off. Red indicator and Green indicator is power off.
2. Power ON: Press RED bottom. Red indicator and Green indicator flash. Then the Green indicator stays on or keeps flashing. When charging, the green indicator stays on; When not charging, The indicator flashes.
3. Test: Press the green button, the LED light and Fan work at the same time. This checks to see that it is working. It will take 30 seconds before working.
4. Charging. When the solar panel charging the battery, the Green will flash.
5. Working. When the lamps or Motor working red indicator will remain on.
6. Fault. When the motor or lamps have a fault, the red colour will quickly flash.
7. Low battery. When the battery is low, the red indicator will flash slowly.
8. When using a nearby power supply, you can use the DC adapter. It will work at night, the fan and lamp will keep working. (Fan will not stop). If you need the unit to work for 24 hours, please cover the solar panel.

How to install the Solar Insect Crop Eliminator

Step 1: Place the bucket on the ground. Put some soil around the bucket.

Step 2: Fill the bucket with water

Step 3: Cover the holes with the net

Step 4: Put the top part on the bucket

Step 5: Use the screws to fix the top part and bucket together.

Specifications

Solar panel Power: 13 Watt Solar panel

Quantity: 2 pcs Solar panel Total: 26 watt Battery: Li-ion 8800 MAH / 11.1V LED: UV LED 395nm

LED power: 5 Watt Fan: 8 inch

Motor: DC Brushless motor Motor power: 8 Watt

Fan Work time: 10 seconds every 2 minutes DC input voltage: DC12V

Size

Solar panel size: 34cm x 32 cm

length x width x height : 65 cm x 52cm x 125cm

Bottom bucket volume: 160 L

Weight: 11 kgs

Water volume: 90L

Story Time:

“When we first got this trap in for testing last Spring, I provided one unit to my father. He placed the very large solar insect trap in his back yard. From the pictures below you will see that apart from catching many mosquitoes he took care of all the codling moths in the neighbourhood. Needless to say, he is very popular now because everyone produced the best fruit collection on their citrus trees for as long as anyone could remember. Furthermore, the contents of the big blue container provide a supernatural fertiliser for his garden” – great product. Andrew F – Pestrol Owner.
